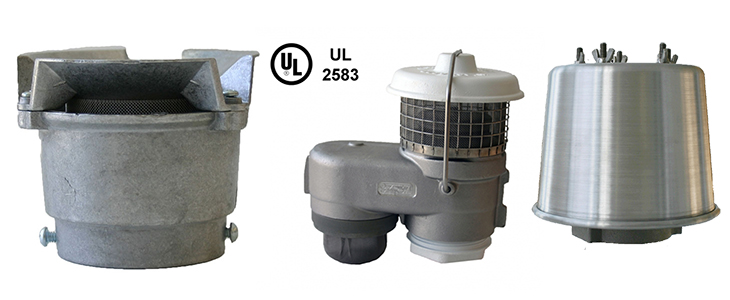

Vents

Normal Vents
Vents allow the tank to breathe during filling and discharge operations. The range of vents starts from simple open vent to T-style double outlet vents. The size varies from 1" to 4".

Pressure/ vacuum vent
Pressure/ vacuum vent comes with Pressure/vacuum poppets which seal vapors in the tank when pressure is equalized and used in conjunction with emergency vents. Available in different sizes and different pressure and vacuum settings.

Vent with flame arrestor
Vent with flame arrestor helps prevent the transmission of heat and/or an ignition source into the tank. Flame arrestors are used in conjunction with normal vent or pressure vacuum vent. A normally closed poppet in the valve opens at a predetermined pressure or vacuum setting to allow the tank to vent. UL listed vent with flame arresters are now added to our inventory (Morrison Bros. Model 352---0200 and 352S--0200 in 2" size and 352---0300 and 352S--0300 in 3" size, UL Certificate number 20171005-MP5161).

Emergency vent
Emergency vents are installed on above ground tanks as a code requirement. They provide high capacity pressure relief if the tank is exposed to fire. When the internal tank pressure reaches the opening pressure of the vent, the weighted cover moves up on the centre pin allowing air to escape. when the internal tank pressure drops, the cover closes back automatically. UL listed for above ground tank application. (Morrison Bros. model 244, UL certificate number 20150709-MH17696)
